Remote access void scanning with the GSM-16 (CALS)

GSM-16 system features

STANDARD OUTPUT: Easily export to DXF or Point Cloud

LIDAR SCANNER: Scan 16° in a single pass, faster and more accurate than ever before!

SELF ORIENTING: Maintains scanner orientation and positional accuracy using IMU technology and dead reckoning.

MOTORIZED DEPLOYMENT: Lower with a small motorized winch or push upward with solid fiberglass rodder.

LIGHTS/CAMERA/ACTION: See it all live as the scanner is deployed.

65mm DIAMETER: Fits in standard NQ, HQ drill holes or any 3” borehole.

Toughest CMS scanner on the market

The GSM-16 is a borehole cavity monitoring system (CMS) that is designed to fit into a 3″ or larger borehole. Used to scan previously inaccessible voids in old mines, operating mines and civilian sewer systems.  All are accessible with the Geosight GSM.

Used to scan historical mines and operating mines for infrastructure inspections or safety concerns, or to scan inaccessible sewer galleries, the GSM-16 is a powerful tool. Equipped with lights, a camera and a solid state LIDAR, it can be used for a variety of mining jobs.

Lights and camera lets the void be examined real time

Control the camera positioning with the movement of a mouse

Full 360° view on the video

Record and view

Examine the hole to ensure no blockage

Examine the sides of the hole

Compact Design

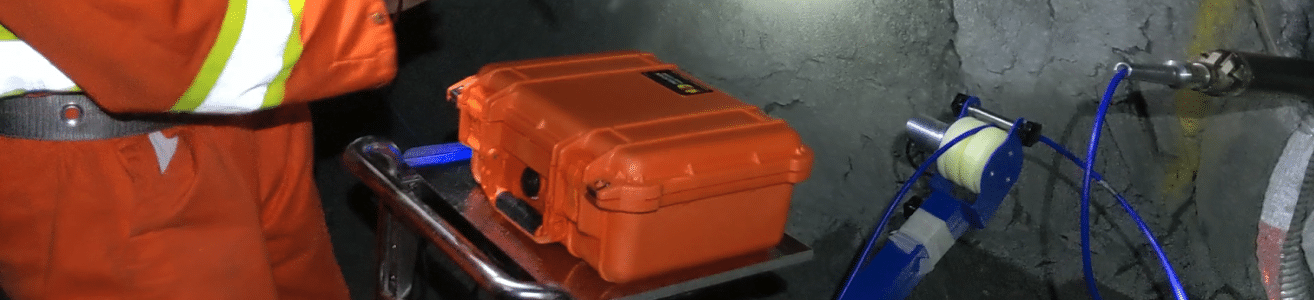

Manual or power winch available

Upto 500 m of cable for extreme depth scans

Real-Time viewing of LIDAR scan data

Multiple resolutions possible, low, medium and high

Edit the points live on screen, no extra software needed

Export to DXF or IGES with no post-processing required

Simple to use free software

Install on any Windows computer

Trusted by mine bosses worldwide
